Porsche 987.1 Boxster to a Monster EV!

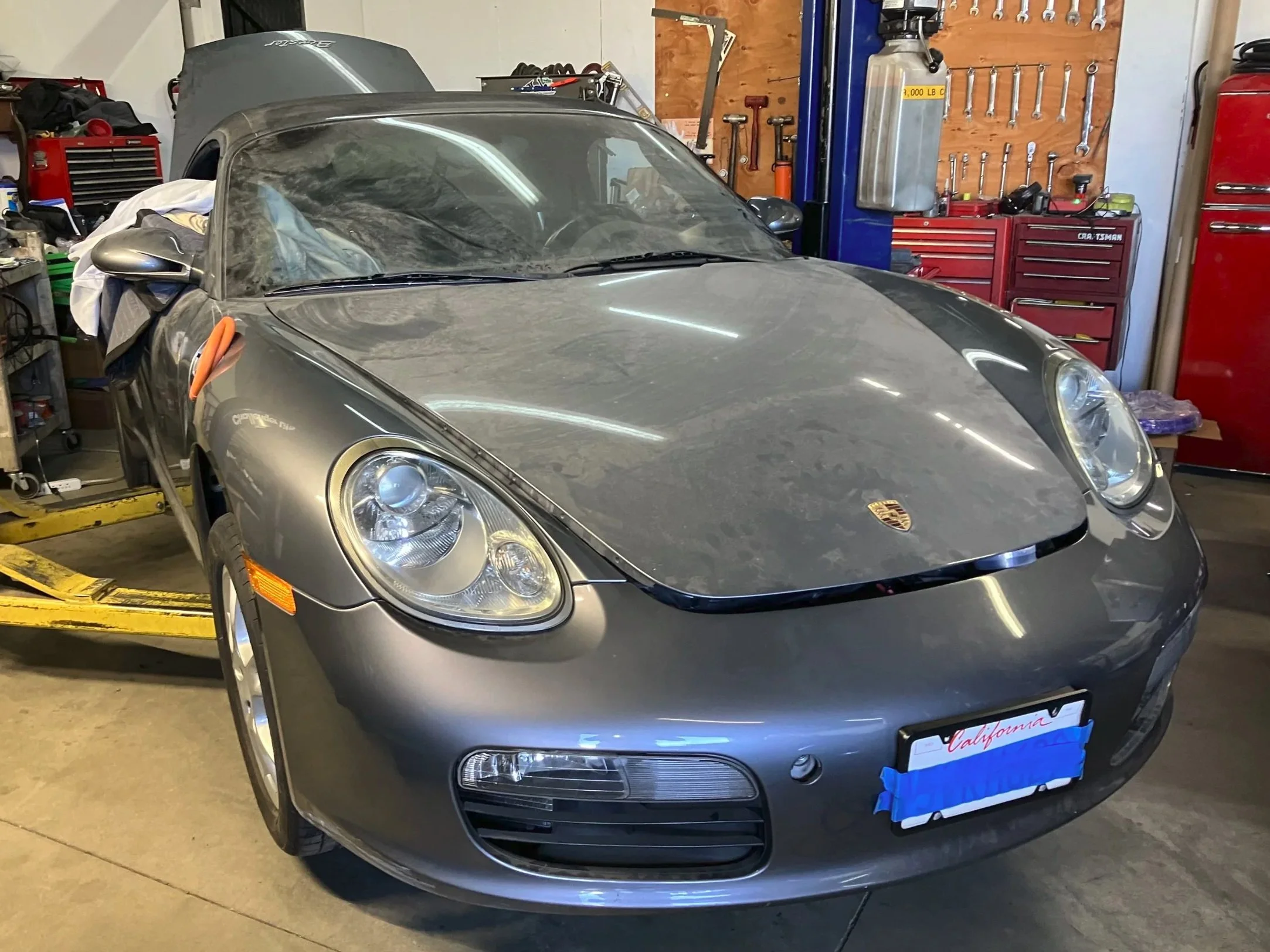

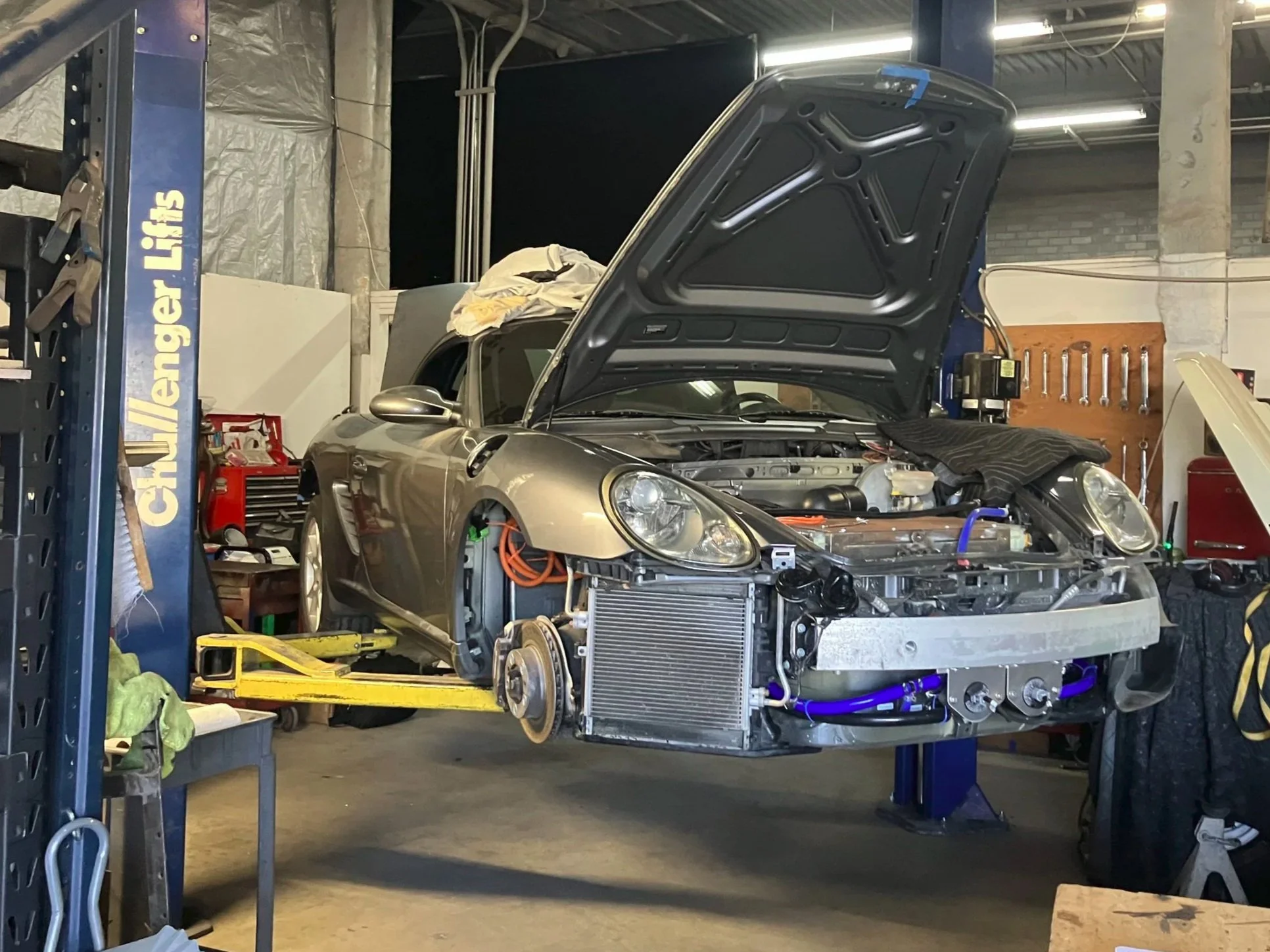

During transformation
“Naomi - 2006 Porsche 987.1 Boxster transformed to electric””
Details:
Build undertaken in 2025 in partnership with Magnetomotive.

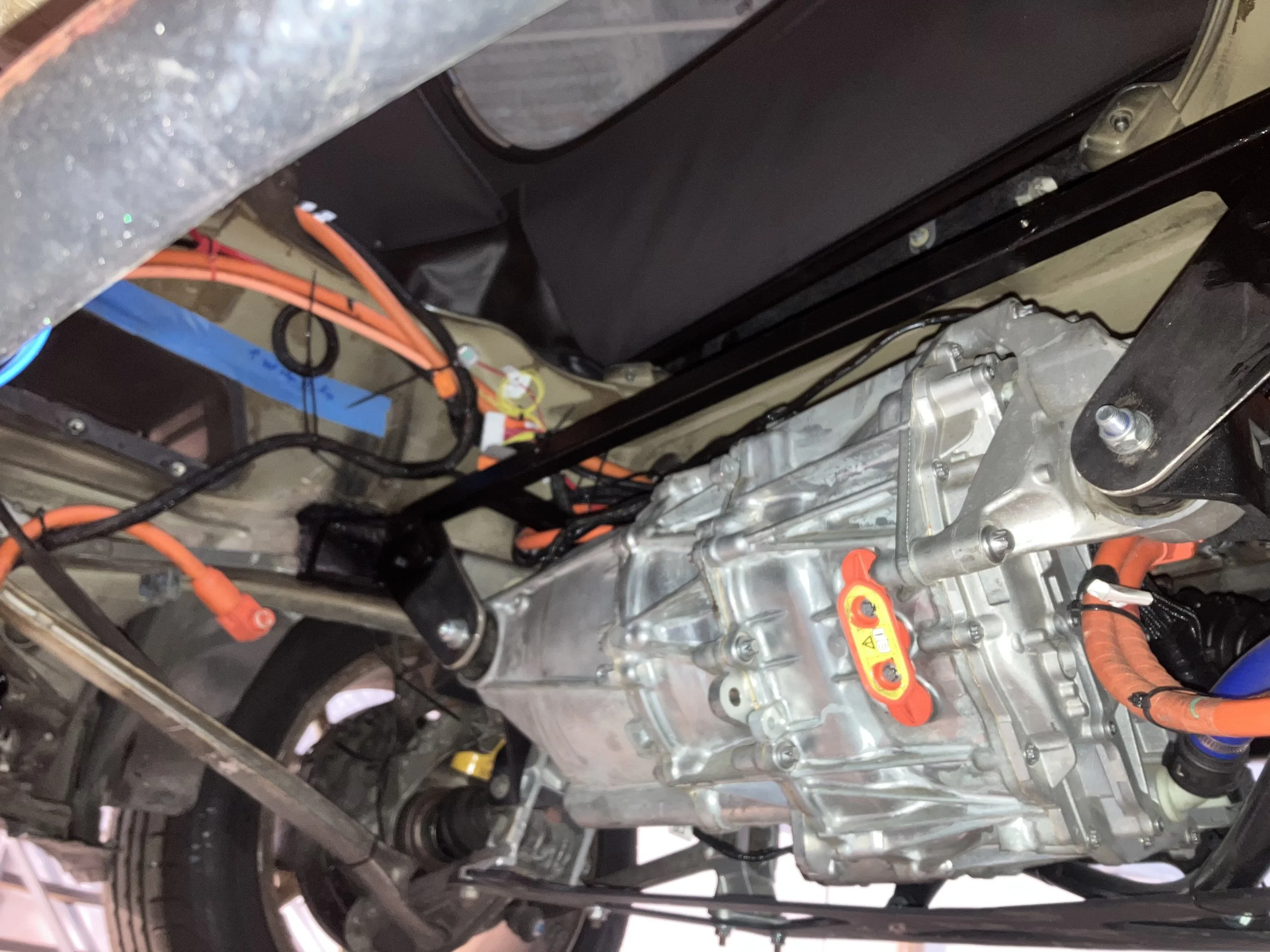

Motor: Tesla Model 3 RDU (rear drive unit)
Peak Power 200 kW (approx 268 HP)
Peak Torque 420 Nm (more than 310 ft-lbs!)
Max RPM 18,000 rpm
Controller: EV Controls TC2
Battery Pack: 16 Tesla Model S Lithium Ion modules located in 3 battery boxes
(each: ~24V, 5.3kWh; total: ~400V, 85kWh)Battery Management System (BMS): Ewert Energy Systems Orion BMS 2
Charger:
Level 3 “Fast DC” charging
6.6 kW Level 2 for at home charging
J1772 receptacle in former gas filler door
Range: ~200 miles

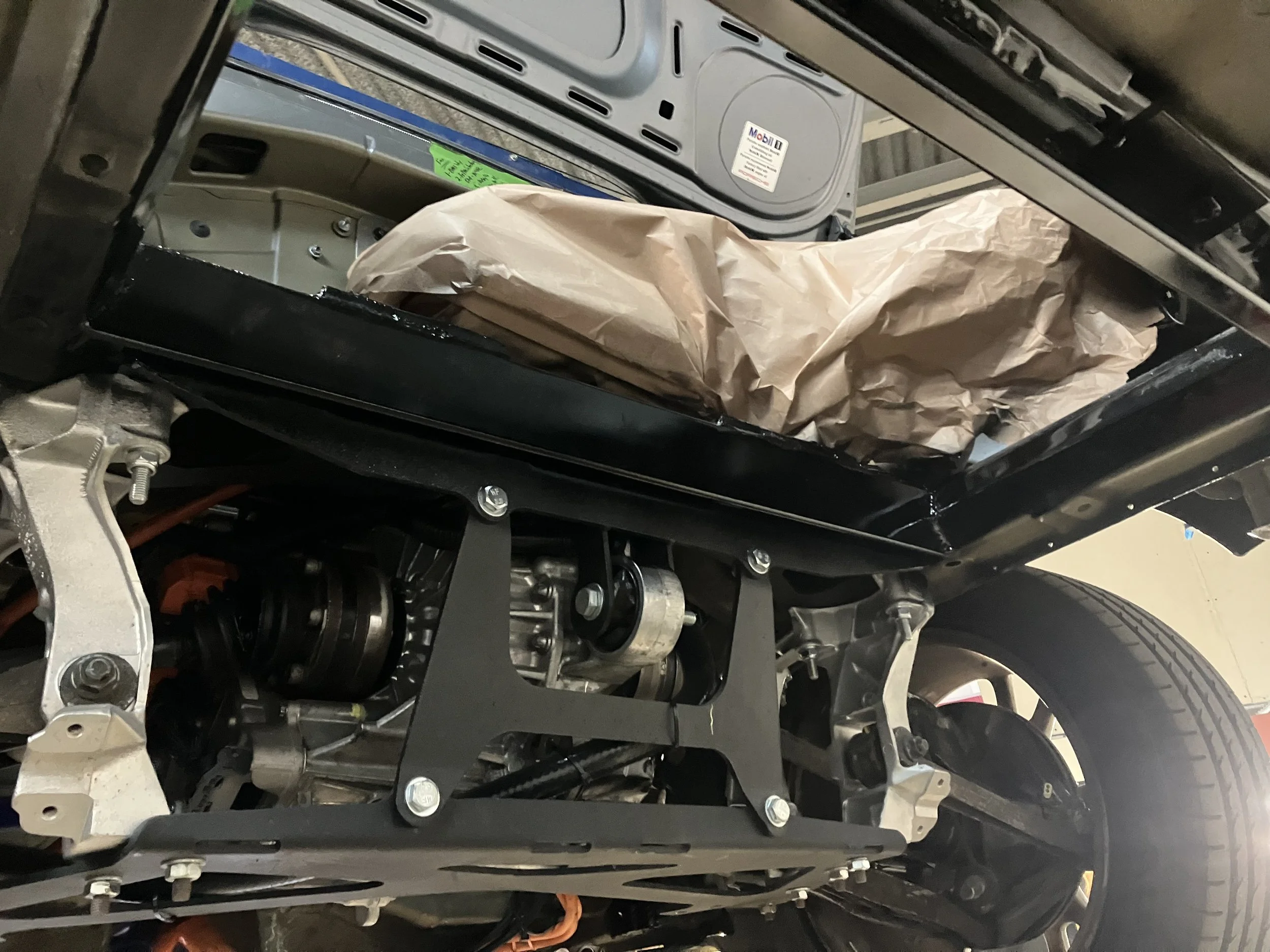

Cavity for rear battery box & the motor

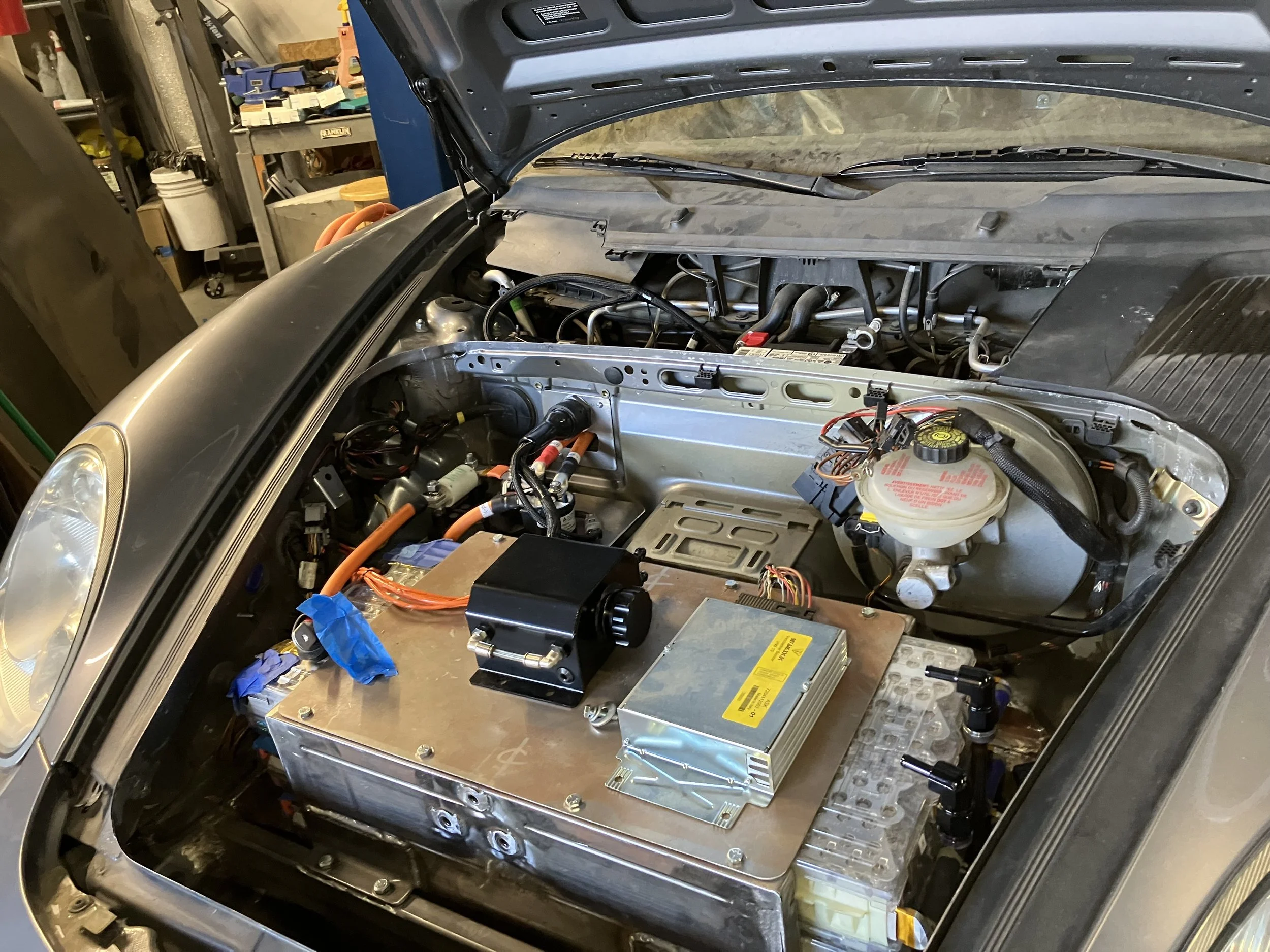

Fitting front battery box in the Frunk
